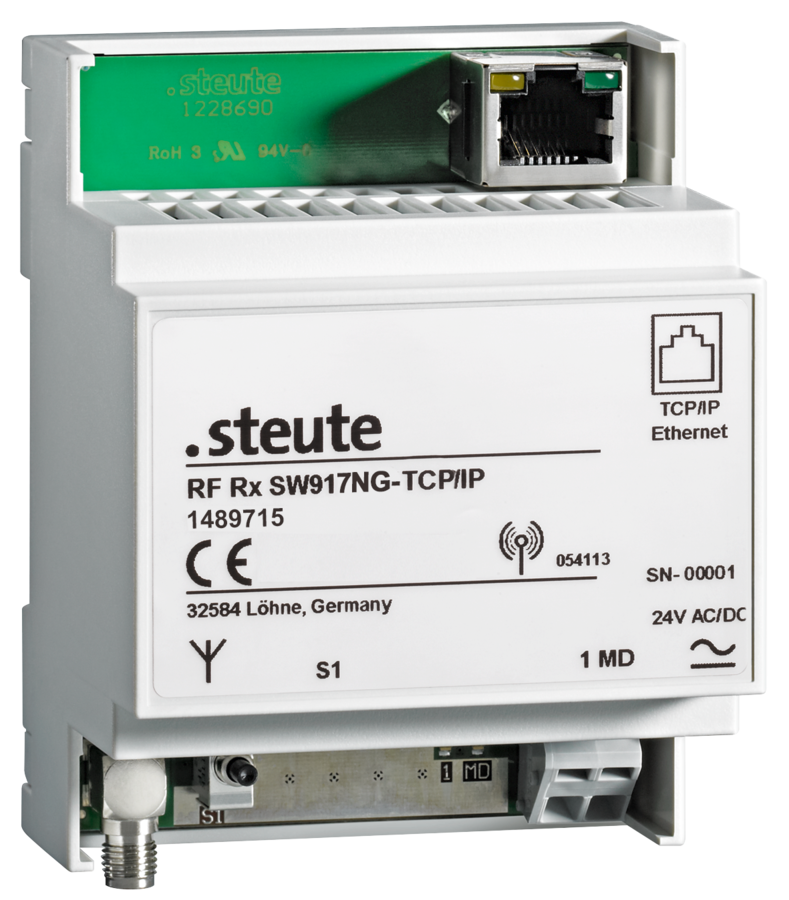

Wireless receiver
RF Rx SW917NG-TCP/IP
Article no.: 1489715
Product features
sWave® wireless technology
Communication via UDP or TCP/IP (Server or Client - Mode)
Webserver based Setup
Including Modbus/TCP interface
Transmitter/receiver assignment by teaching mode
LEDs for indication of operating state
SMA reverse plug-in connector for external antenna
Notes
External antenna always required for optimum wireless range.
This is available for sale within Australia/NZ only through our partner NHP Electrical engineering Products Pty. Ltd.
Technical data
General technical data
- Applied standards
- IEC 60947-5-1, CISPR 32:2015 + AMD1:2019; ARPANSA S-1:2021; AS/NZS 2772.2:2016 + AMD1:2018; ACMA Radiocommunications Equipment (General) Rules 2021; NZ RSM General User Radio Licence – Special Condition 23
- Degree of protection
- IP20 (IEC/EN 60529)
- Mounting
- DIN rail mounting
- Connection
- terminals with CAGE CLAMP WAGO Series 236: 0.08 … 2.5 mm² / AWG 28-12, AWG 12: THHN, THWN, stripping length 5 … 6 mm / 0.22 in
- Network interface
- 10/100 Base-T Ethernet (Auto detection) via RJ 45
- Software interface
- TCP (Client, Server) / UDP / IP (DHCP) / ModbusTCP
- Rated operating current/voltage Ie/Ue
- max. 0.2 A/12 VDC - 15 % ... 24VDC + 10 %
- Display
- green LED: reset state
orange LED: signalisation of telegram
- Degree of pollution
- 2
- Ambient temperature
- 0 °C … +55 °C
- Storage and shipping temperature
- –25 °C … +85 °C
- Note
- Allows configuration of LBT and status signal of the transmitters
Wireless technology
- Frequency
- 917.0 MHz (Australia)
- Channel bandwidth
- 550 kHz
- Protocol
- sWave®
- Wireless approvals
- Australia: |
Dimensional drawing
Further drawings
Arrangement of receiver and switch antenna
A = Optimum mounting
B = Possible mounting
C = Unsuitable mounting
